Resistor pack - Replacing with proper valued ceramics. Including pictures!

Ceramic heater resistor repair packs as below now for sale - 5.50 including postage.

Well, speeds 1 and 2 predictably don't work on my new 45.

Decided to fix it properly, and make a kit up using ceramic resistors. Not just ceramic resistors though - ones with the proper OEM spec values!

I had previously fitted all 1-ohm items, which although working OK made the lower speeds slow and 3 too fast. Fail.

So after a bit of digging, I made up resistors with the following values:
Low: 1.5 Ohm
Medium: 0.75 Ohm
High: 0.23 Ohm

I had to double up on the medium and high speeds, both to get the correct values and also to prolong the life of the packs. Low is a standard 10w item, medium is rated at 20w (2x10w) and high at 14w (2x7w).

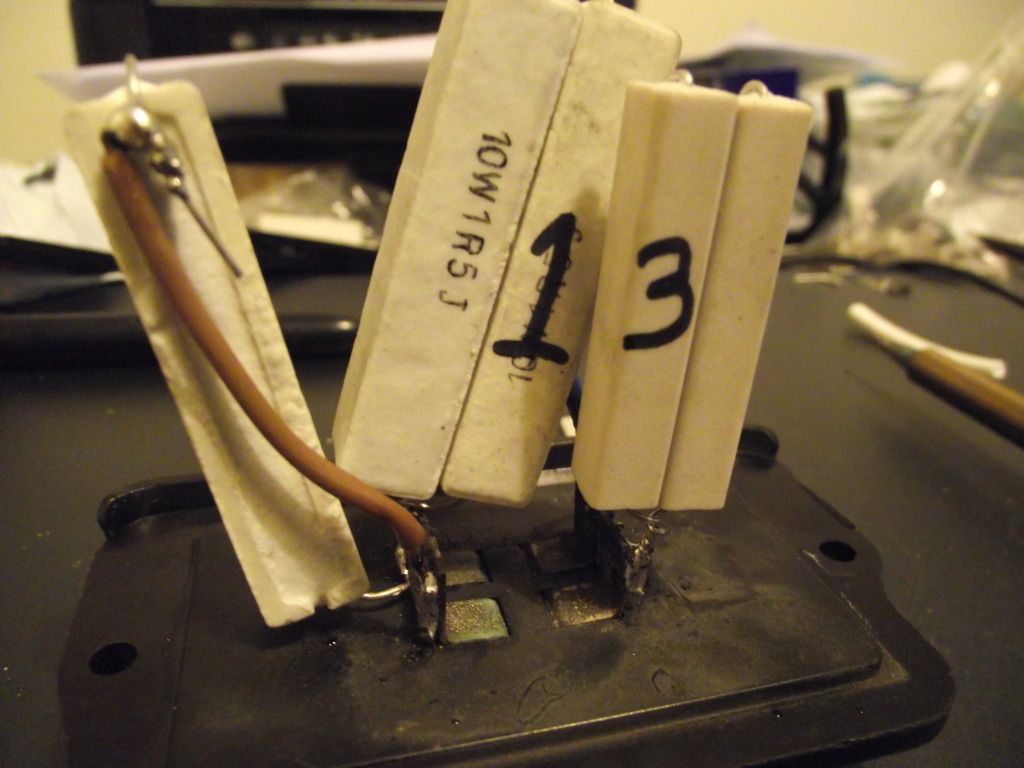

Some pictures...

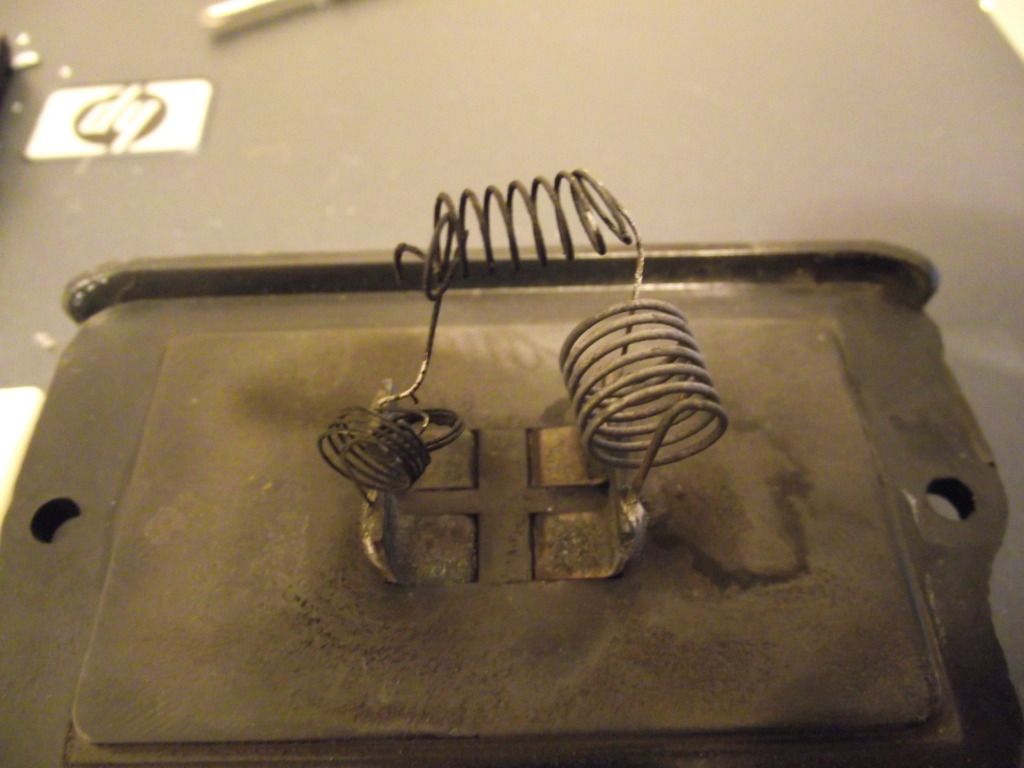

The original:

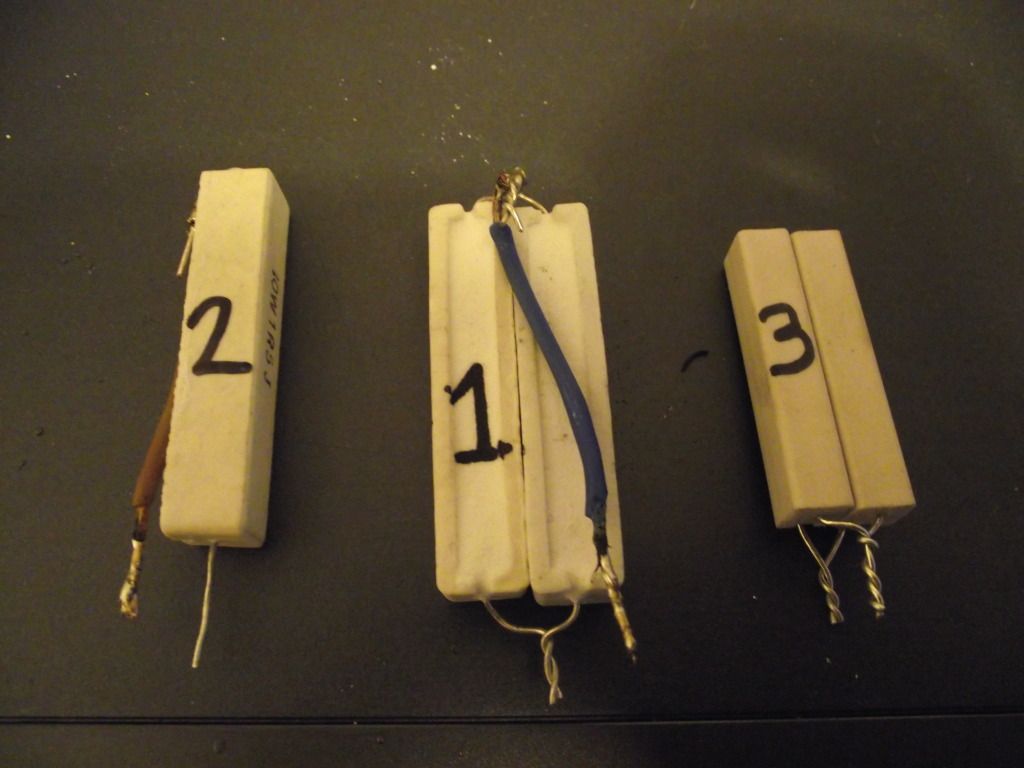

Resistors with flyleads:

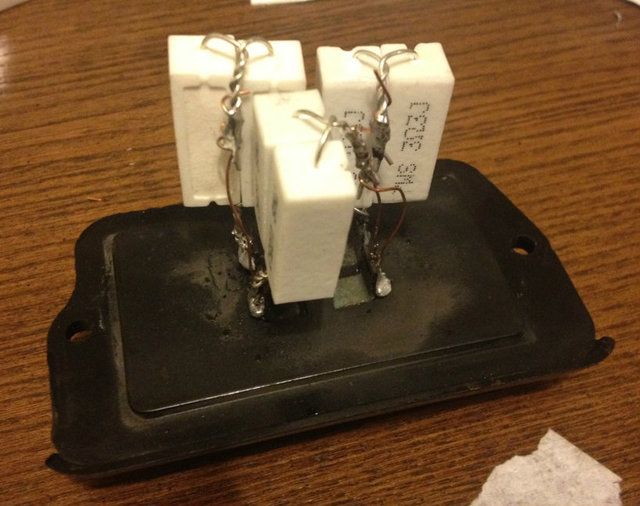

Finally, done!





Fitting was a doddle, a little tight for space but I got there in the end.

Speeds are bang on what I remember from my first 400, excellent!

I've got a good few left over, if anyone wants a set sending out I can do for 5.50 including postage with flyleads attached as pictured (pretty much what they cost me to make). If you cover postage I'll also more than happily fit them for you to your existing pack.
